PVC OIL FENCE BOOMDownload Catalog

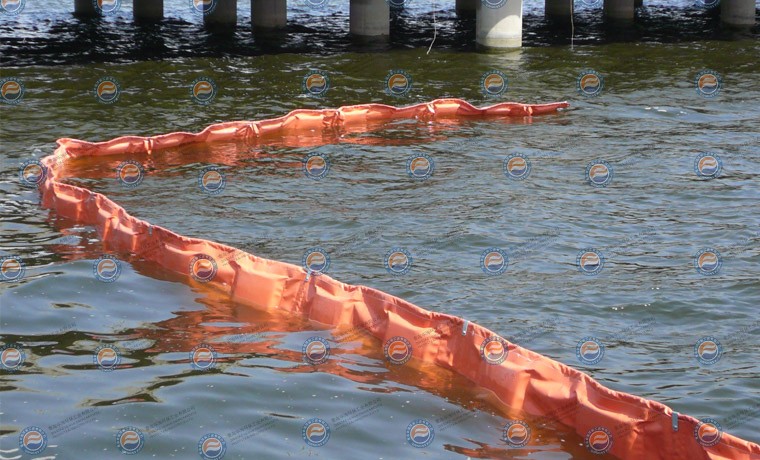

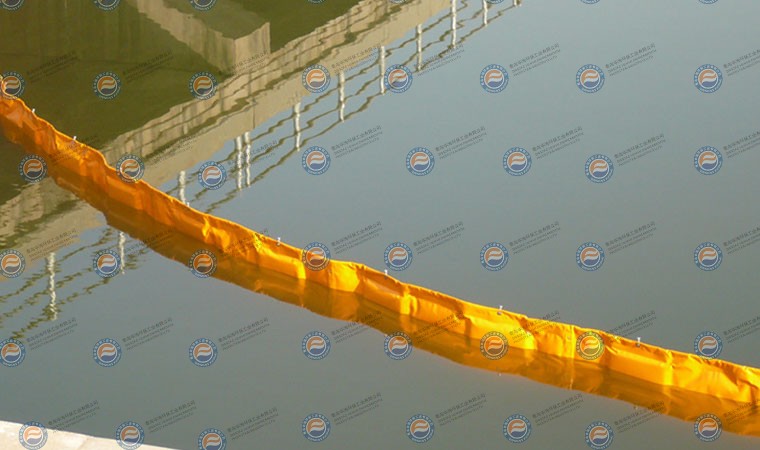

PVC OIL FENCE BOOM is a simple, economic and effective oil containment boom, which is widely used in seaports, rivers, lakes, ponds, oil-water separation tanks and other occasions.

FEATURES OF PVC OIL FENCE BOOM:

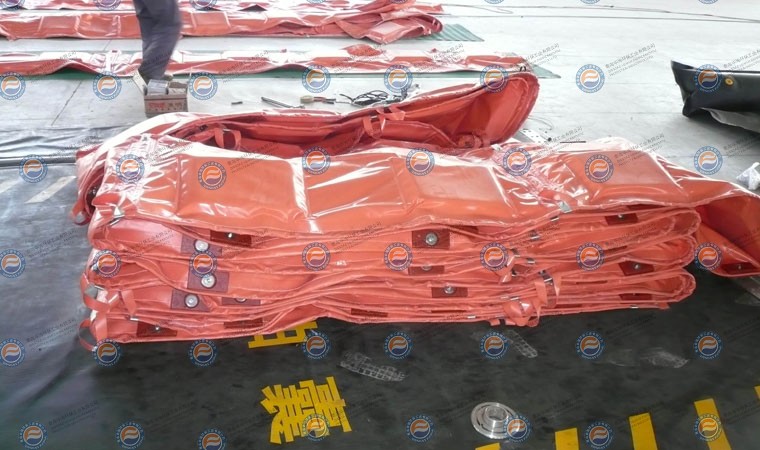

The oil fence boom is made of high strength fabric coated with bright orange PVC, which has the characteristics of oil resistance, seawater corrosion resistance and UV radiation resistance. The solid float in the unique shape makes it easier to store. There is a force-withstanding element each in the upper and lower parts of the boom body to ensure the strength. Elastic supporting bar is set between the solid floats to keep the oil fence straight and ensure the effective draft.

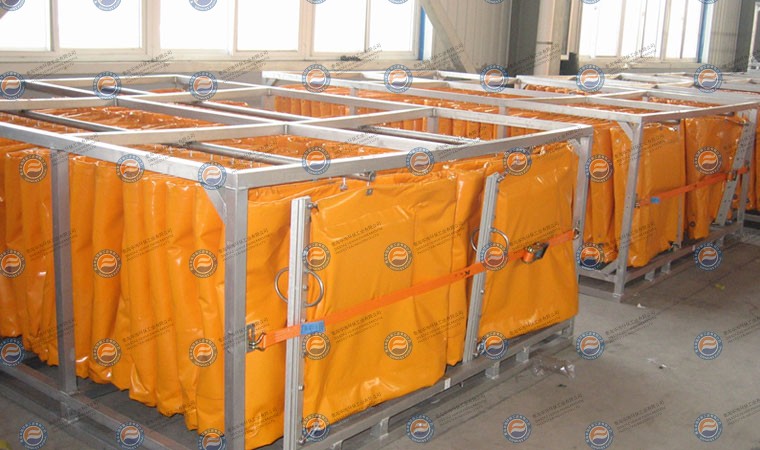

The deployment and retrieval of the PVC oil fence boom is very simple. The oil fence boom can be equipped with hydraulic drive reel frame or hanging storage rack.

More +

Technical Specification

 Model

Parameter

SWL600

SWL 800

SWL 1000

SWL 1100

Overall Height mm

600

800

1000

1100

Freeboard mm

200

300

350

400

Draft mm

350

500

600

700

Length per Section m

10, 20

Max. Working Tensile Strength KN

20

25

30

35

Max. Resistance to Wave Height (m)

0.2

0.3

0.4

0.5

Max. Resistance to Wind Speed (m/s)

0.2

0.3

0.4

0.5

Max. Resistance to Current Speed(Kn)

0.2

0.3

0.4

0.5

Ballast

Block or Ballast Chain


Note: The technical data are subject to change without notice due to modifications to the product and shall be confirmed by the manufacturer and customer.
